Application Used in Structured Cabling Systems for voice, data and image traffic, according to the requirements of the standard for Category 6, ANSI/TIA/EIA-568C-2.1 (Balanced Twisted Pair Cabling Components), for horizontal or secondary cabling, internal use, in telecommunications rooms.
Technical Characteristics
Category 6;;
24 positions;

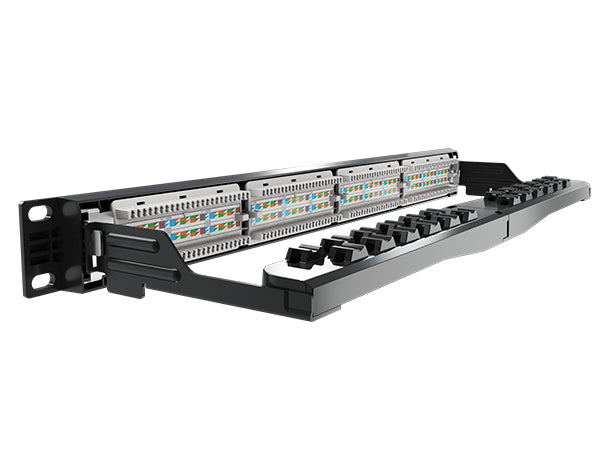

Rear guide that allows the cables to be fixed;
Tinned phosphor bronze connection terminals, 11s0 IDC standard, for 22 to 26 AWG conductors;
19” width and 1U or 44.45 mm height, which allows rack mounting;
It has a place to identify the doors;
Supplied in black;
Special anti-corrosion paint;
Compatible with Punch Down 110IDC tools;
Compatible with RJ45 and RJ11 plugs;
Product that complies with environmental respect policies.
